Aluminum channels provide a rigid mounting surface, light diffusion and mechanical & dust ingress protection for Waveform Lighting LED flex strips.
Fits all single-color LED flex strips manufactured by Waveform Lighting (10 mm width)
Channel length of 3.3 ft (1 meter)
Includes high light transmission diffuser cover to eliminate "dots" and dark spots created by individual LED emitters
High quality aluminum provides additional heatsinking and mechanical protection for even longer LED strip longevity
Additional mounting accessories included
Available as a FLAT or CORNER channel
Solderless connectors (PN 3071/3070) do NOT fit inside the channel. For a seamless installation, we recommend directly soldering wires.
Pack of 5 (total 16.5 ft / 5 meters)

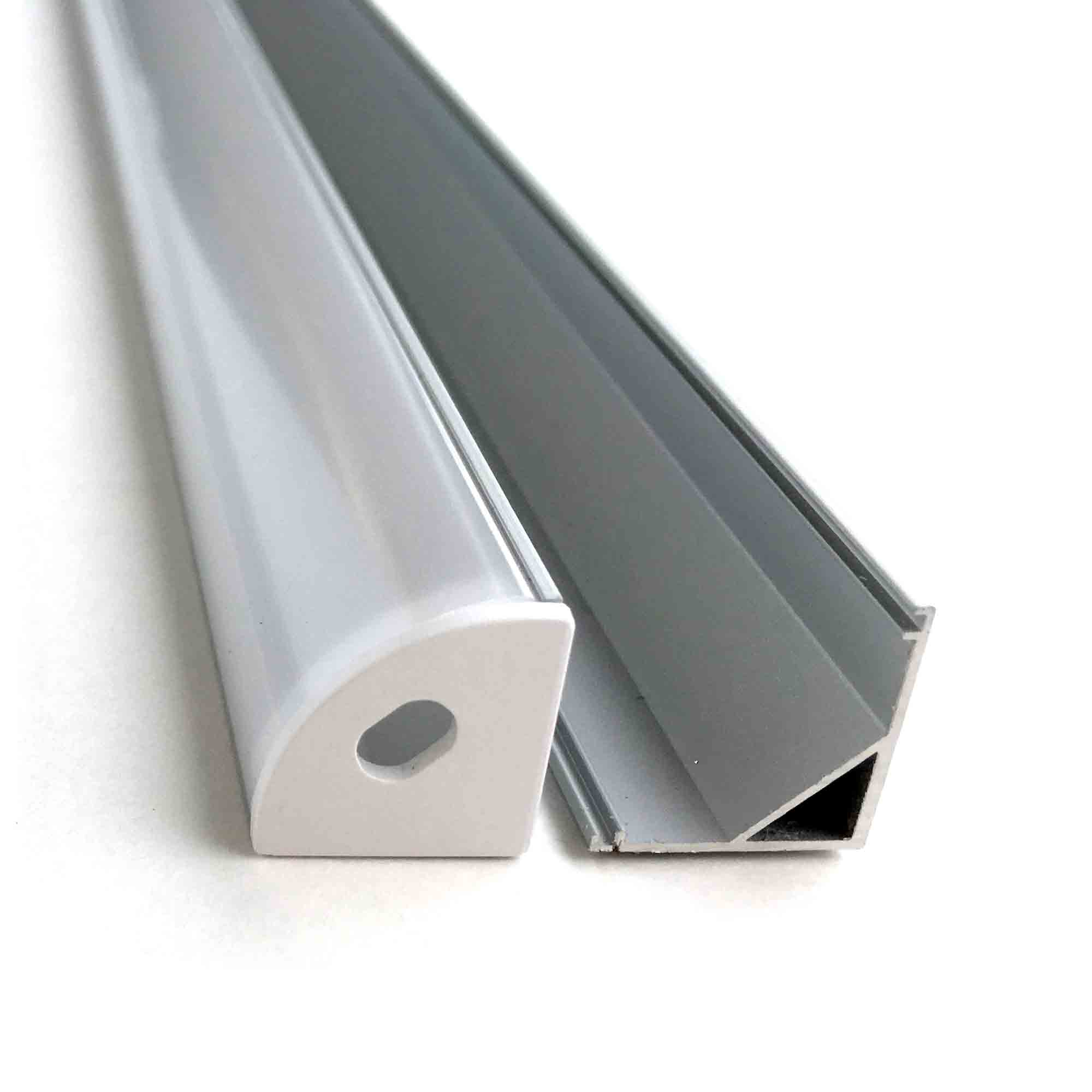

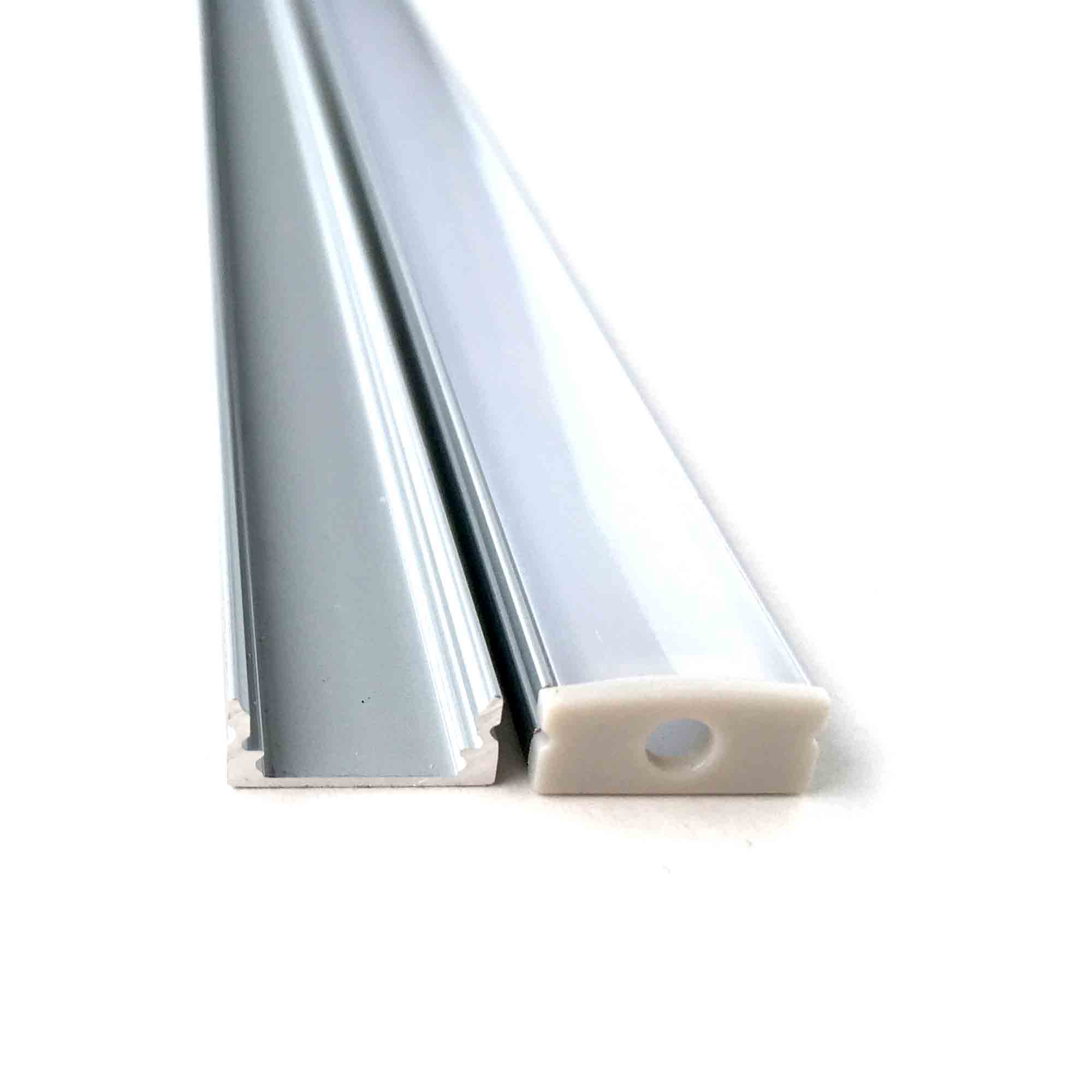

Use the CORNER CHANNEL for LED strip installations in wall corners or where a diagonal light distribution is desired. The FLAT CHANNEL offers the lowest profile and can be used for ceiling-mount and suspended installations or under cabinet lighting.

Installation Accessories

Each 5-Pack includes:

5x aluminum channels, 3.3 ft each
5x end caps (with hole for wires)
5x end caps (no hole)
10x mounting brackets
10x screws

Compatible With

Please note: solderless connectors (PN 3071/3070) do NOT fit inside the channel. For a seamless installation, we recommend directly soldering wires.
