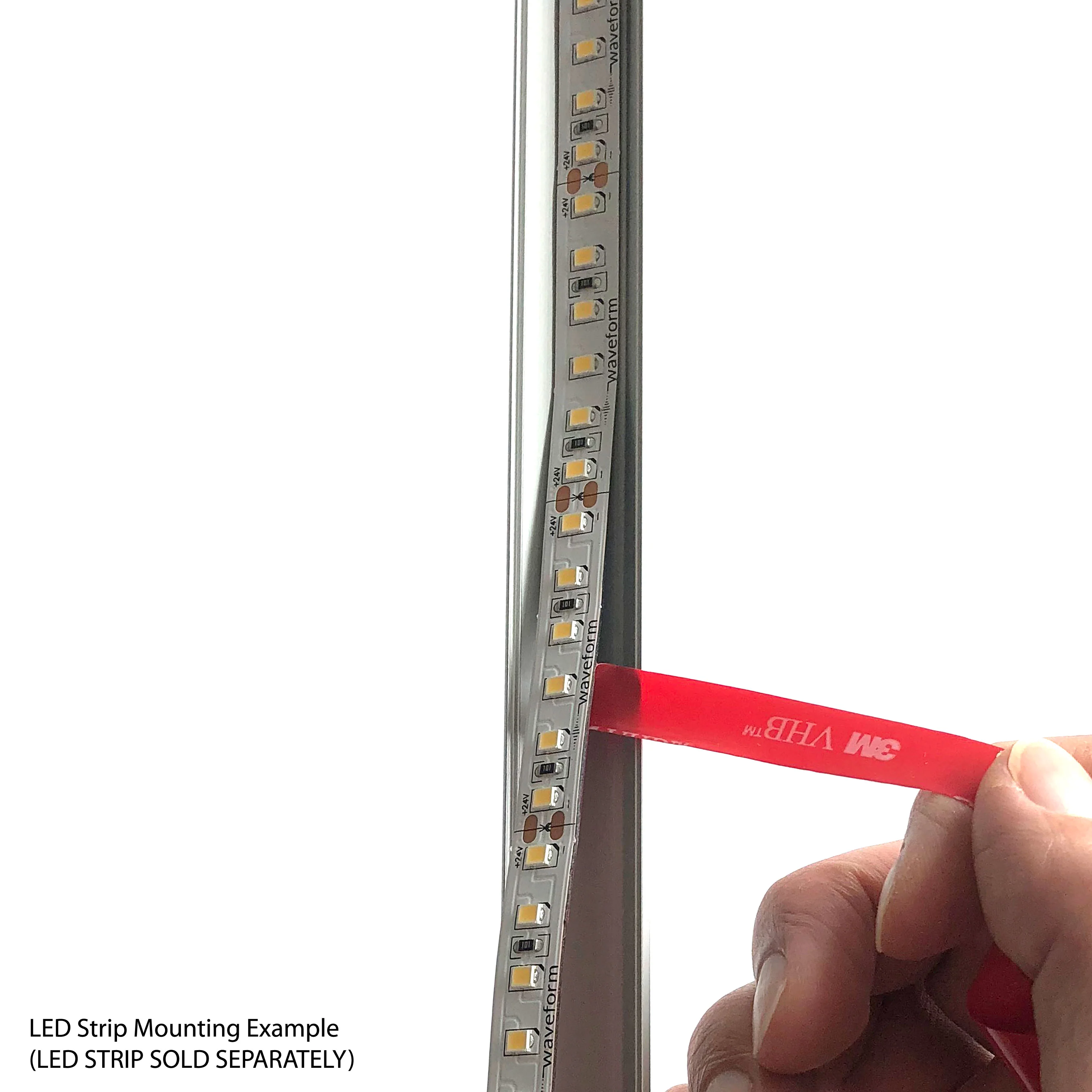

• Aluminum channels provide a rigid mounting surface, light diffusion and mechanical & dust ingress protection for Waveform Lighting LED flex strips.
• Fits all single-color LED flex strips manufactured by Waveform Lighting (10 mm width)
• Channel length of 3.3 ft (1 meter)

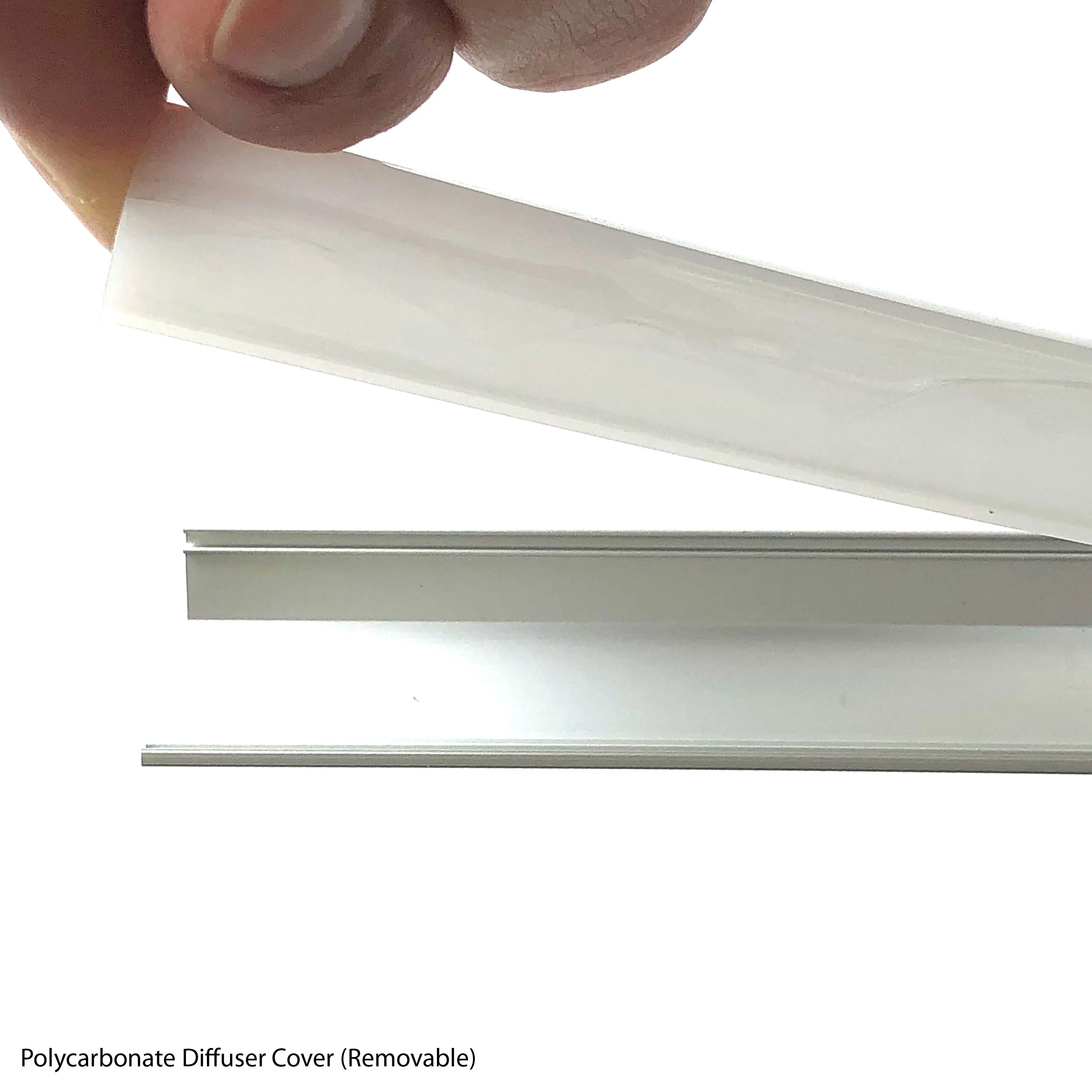

• Includes high light transmission diffuser cover to eliminate "dots" and dark spots created by individual LED emitters
• High quality aluminum provides additional heatsinking and mechanical protection for even longer LED strip longevity
• Additional mounting accessories included

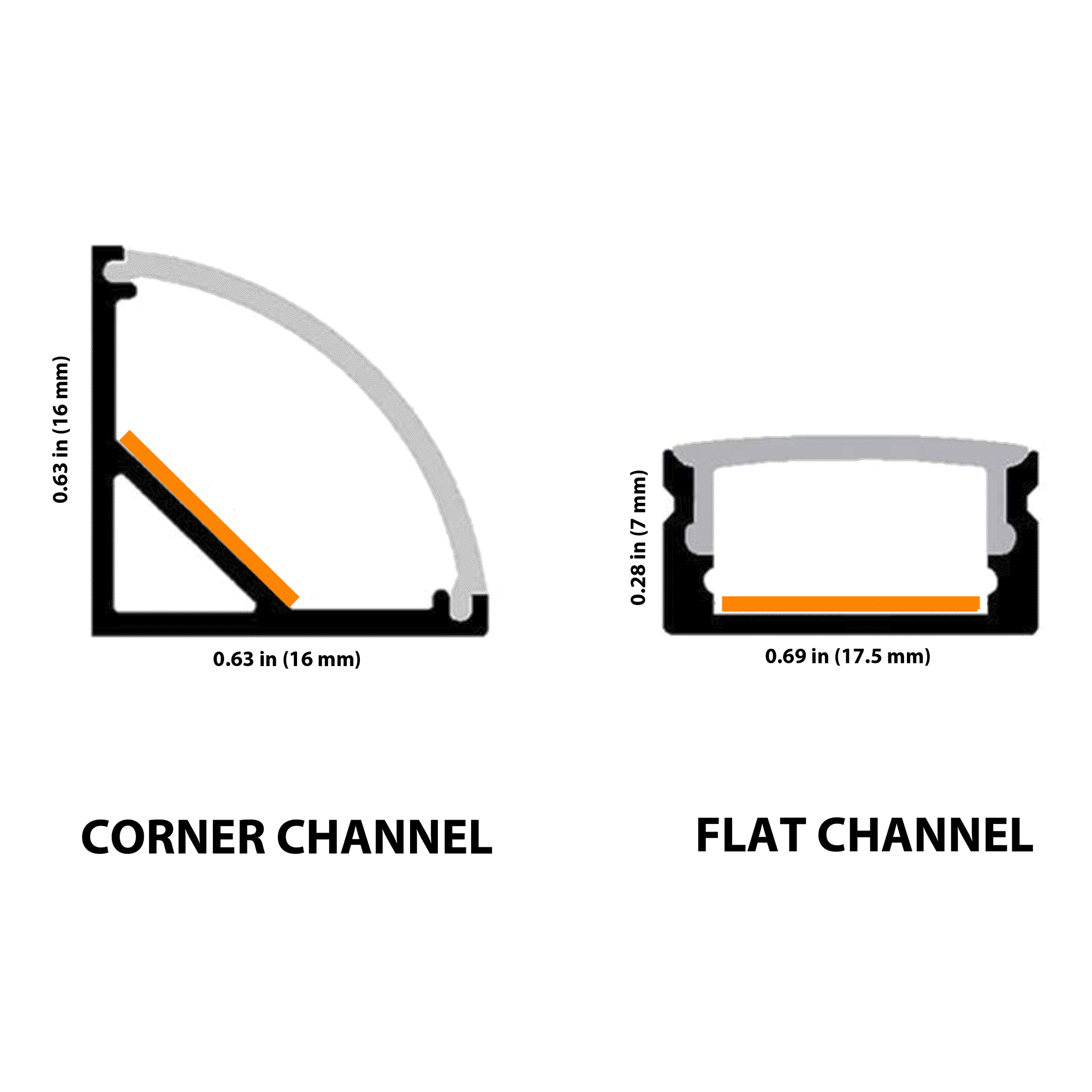

• Available as a FLAT or CORNER channel
• Solderless connectors (PN 3071/3070) do NOT fit inside the channel. For a seamless installation, we recommend directly soldering wires.
• Pack of 5 (total 16.5 ft / 5 meters)

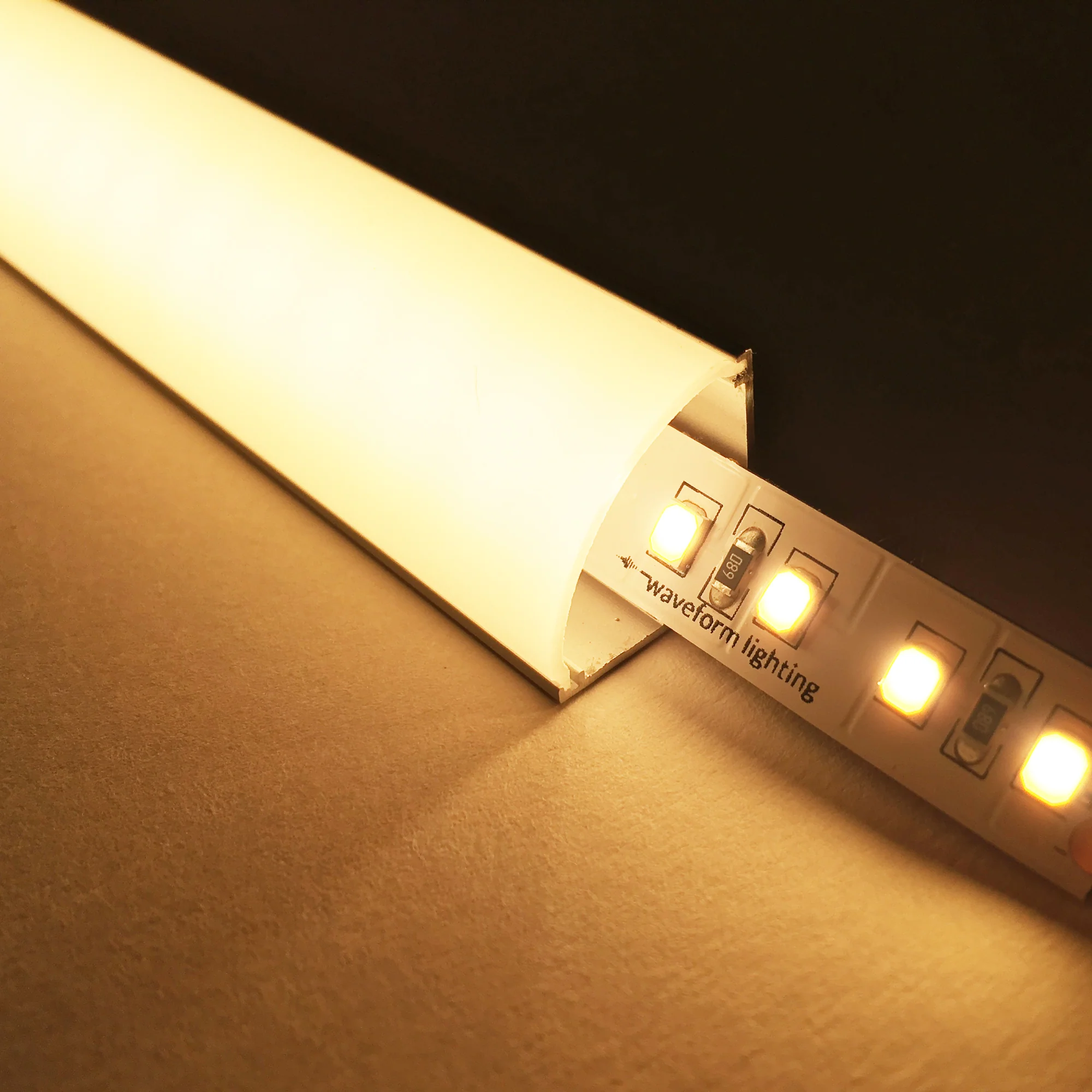

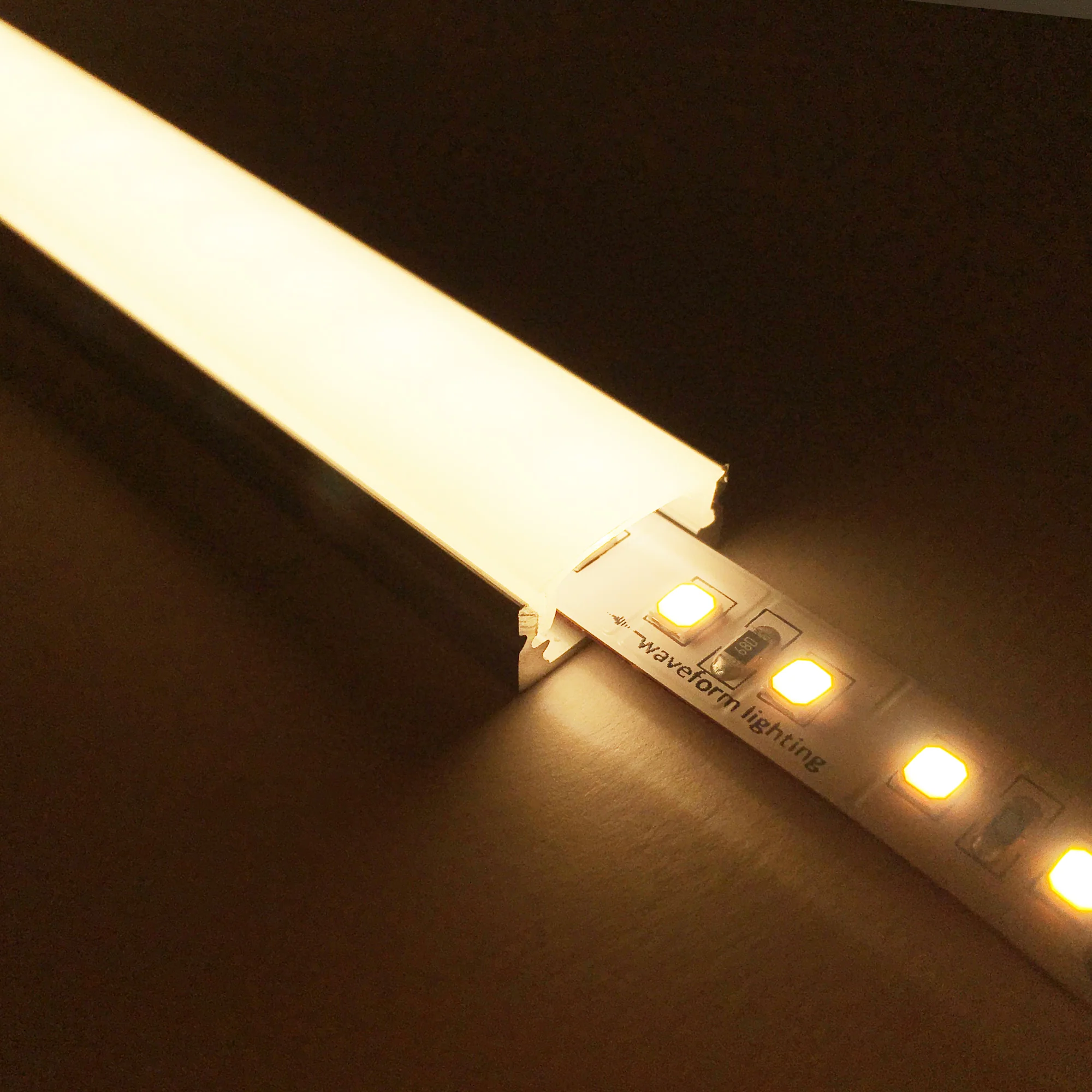

Use the CORNER CHANNEL for LED strip installations in wall corners or where a diagonal light distribution is desired. The FLAT CHANNEL offers the lowest profile and can be used for ceiling-mount and suspended installations or under cabinet lighting.



Installation Accessories

Each 5-Pack includes:

• 5x aluminum channels, 3.3 ft each
• 5x end caps (with hole for wires)
• 5x end caps (no hole)
• 10x mounting brackets
• 10x screws





Compatible With

Please note: solderless connectors (PN 3071/3070) do NOT fit inside the channel. For a seamless installation, we recommend directly soldering wires.

• Ultra High 95 CRI LED Strip Lights for Home & Residential - 16ft/5m Reel
• FilmGrade™ WHITE LED Strip Lights - 16ft/5m Reel
• Ultra High 95 CRI LED Strip Lights for Commercial & Retail - 16ft/5m Reel
• ABSOLUTE SERIES™ LED Flexible Strip - 99 CRI - 16 ft / 5 m Reel
• realUV™ LED Strip Lights - 365 nm / 395 nm
