The Story
- Chip on board LED featuring full spectrum 95 CRI at D65 (6500K) or tungsten (3200K)
- Rated at 100W nominal, maximum 350W
- Ultra high lumen density light output of 10,000 lumens at rated power
- Light emission surface dimensions of 0.84 x 0.84 inches (21.4 x 21.4 mm)
- Premium bin Bridgelux 45x45 mil LED chips in a 10x10 grid for maximum reliability and stability (no leak current)
- Free standard shipping (USA), in stock and ships in 1-2 business days
Product Overview

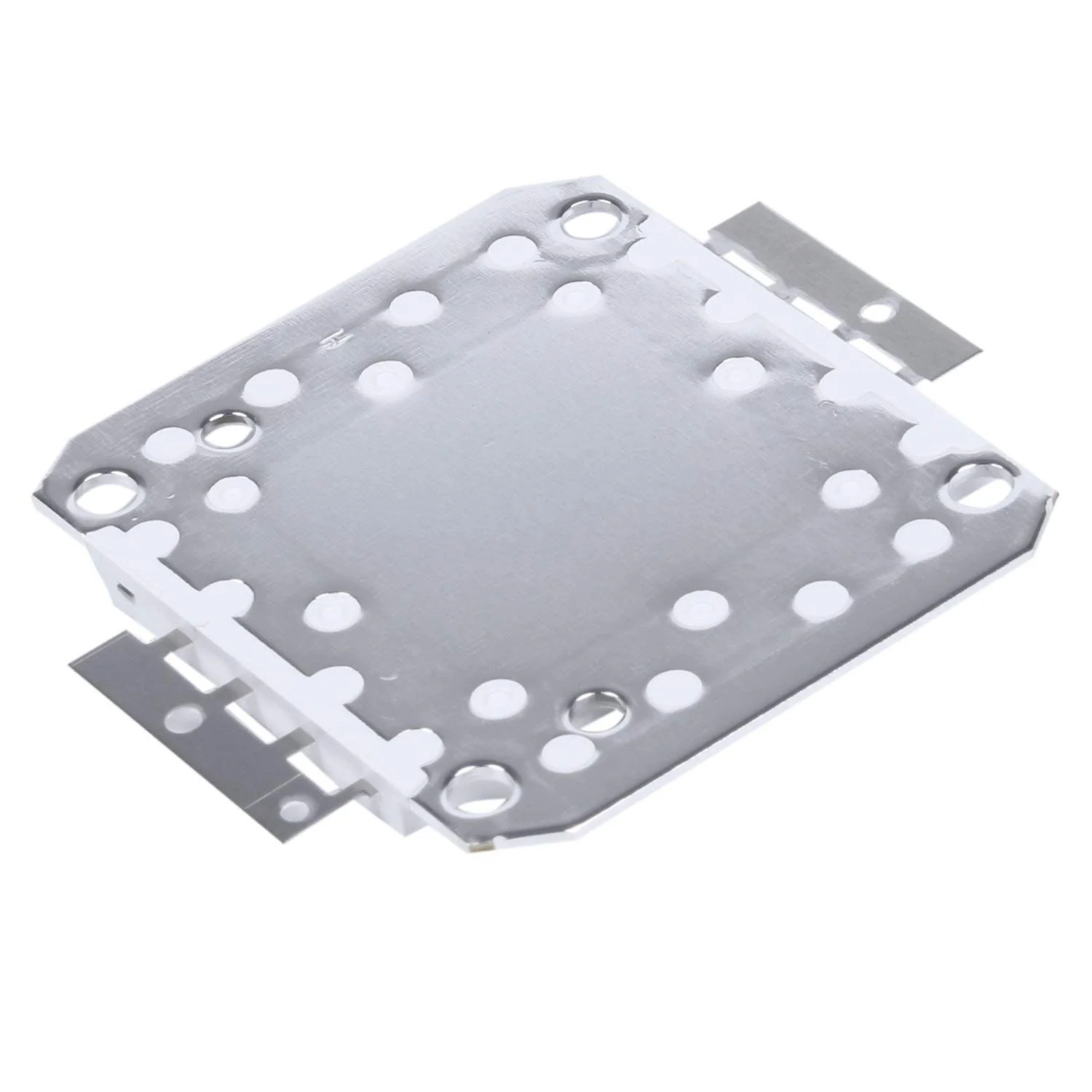

Waveform Lighting's 7200 Seriesā¢ 100W COB LED provides 10,000 lumens of 95 CRI, super high density light from a tiny surface area the size of a postage stamp.
Using an industry-standard 100W COB frame, we developed a unique phosphor mix that achieves an industry-first 95 CRI D65 (6500K) rating as well as tungsten option (3200K). The full spectrum phosphor recipes allow for a near-perfect replication of natural daylight or a tungsten light source from a single COB emitter.Ā
Recommended Accessories
The COB LEDs require at minimum, the following accessories:
- Power supply that can provide constant current control in the 25-30V range, such as Meanwell HLG-120H-30
- Appropriate heatsinking and thermal interface material
- Basic low voltage electronics knowledge and equipment such as wire and solder
Product Downloads
Ā Ā Specification SheetĀ
Ā Ā Photometric ReportĀ
Waveform Lighting 100% Quality and Satisfaction Guarantee
If you're not 100% satisfied with the performance, color or quality of your product, we'll work with you to make it right.
Simply contact us within 30 calendar days after delivery and we'll send a replacement at no additional charge, or offer you a full refund.
- See our fullĀ returns & refunds policy here
- See ourĀ warranty policy here
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
- Chip on board LED featuring full spectrum 95 CRI at D65 (6500K) or tungsten (3200K)
- Rated at 100W nominal, maximum 350W
- Ultra high lumen density light output of 10,000 lumens at rated power
- Light emission surface dimensions of 0.84 x 0.84 inches (21.4 x 21.4 mm)
- Premium bin Bridgelux 45x45 mil LED chips in a 10x10 grid for maximum reliability and stability (no leak current)
- Free standard shipping (USA), in stock and ships in 1-2 business days
Product Overview
Waveform Lighting's 7200 Seriesā¢ 100W COB LED provides 10,000 lumens of 95 CRI, super high density light from a tiny surface area the size of a postage stamp.
Using an industry-standard 100W COB frame, we developed a unique phosphor mix that achieves an industry-first 95 CRI D65 (6500K) rating as well as tungsten option (3200K). The full spectrum phosphor recipes allow for a near-perfect replication of natural daylight or a tungsten light source from a single COB emitter.Ā
Recommended Accessories
The COB LEDs require at minimum, the following accessories:
- Power supply that can provide constant current control in the 25-30V range, such as Meanwell HLG-120H-30
- Appropriate heatsinking and thermal interface material
- Basic low voltage electronics knowledge and equipment such as wire and solder
