99 CRI to truly replicate natural daylight - an industry first
Available in D50 (5000K) and D65 (6500K)
24V DC constant voltage input
800 lumens @ 24V DC
350 mA current draw @ 24V DC
8.4 W power draw @ 24V DC
D50 color point / chromaticity meets ISO 3664:2009 requirements
Aluminum-core PCB for excellent thermal dissipation and long-term reliability
Versatile linear form factor measures 11 inches x 0.78 inches (280 mm x 20 mm)
3.3 mm diameter mounting holes - compatible with standard M3 screws
WAGO 2060 connectors (datasheet) on both ends for plug-and-play connectivity (18 - 24 AWG) and daisy chain capability of up to 10 modules
High-reflectance pure white soldermask for improved system efficacy
FREE ground shipping to USA addresses
See our delivery policy here

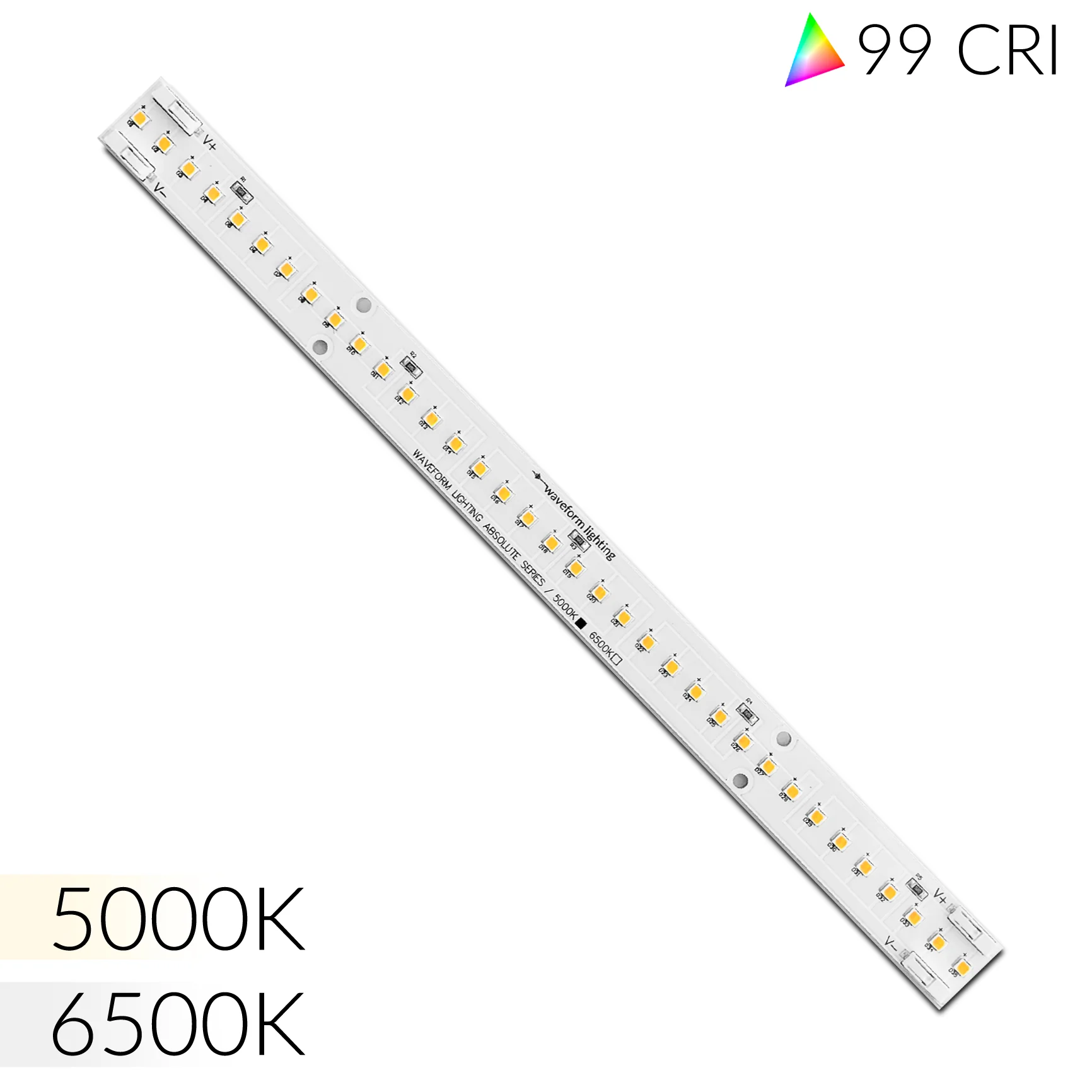

ABSOLUTE™ SERIES LED Linear Module features 99 CRI - a near perfect achievement in color rendering. With color options of D50 (5000K) and D65 (6500K), simulating natural daylight has never been as real.

Requires 24V DC input to operate. FilmGrade power supply (PN 3092) can operate up to 14 linear modules.

Using a third-party power supply? No problem - just make sure your power supply has enough power capacity for the length of LED strip you plan on connecting.

ABSOLLUTE™ LED Linear Modules use the WAGO system, and have WAGO 2060 terminal blocks on both ends of each module. All electrical connections to power and between modules is achieved through these terminal blocks. Terminal blocks require insertion of electrical wire between 18-24 AWG, with 0.28-0.35 inches of insulation stripped off.

For gapless, linear daisy-chaining, use WAGO board-to-board links (PN WAGO 2060-901). For all other connections, use 18 AWG or thinner wire (PN 7098).

If using a PLUG based power supply such as the FilmGrade (PN 3092) power supply, use a DC female to wire adapter (PN 7092) or DC female adapter (PN 7094).

Detailed instructions on assembly are available here.

ABSOLUTE™ LED strips are fully dimmable down to 0%. For an in-line PWM dimmer, see PN 3081. Wall-dimmer setups (e.g. Lutron/Leviton) will require a dimmable power supply (PN 3094). More info on LED strip dimming here.

Product Overview

Waveform Lighting's ABSOLUTE SERIES™ technology is the LED industry's first LED product to achieve 99 CRI at D50 5000K and D65 6500K. The 99 CRI rating indicates that the emitted light is quantitatively near-identical to natural daylight. This is the holy grail of lighting!

Our linear module provides 800 lumens of full-spectrum 99 CRI light that is virtually indistinguishable from natural daylight.

99 CRI ABSOLUTE SERIES LED PHOTOMETRICS

99 CRI ABSOLUTE SERIES

99 CRI ABSOLUTE SERIES

Dimmming

The LED Linear Modules can be dimmed using a PWM dimmer. Our tests using the FilmGrade Flicker Free PWM Dimmer (25 kHz) indicate that between 3% and 100%, spectral characteristics remain extremely stable. Specifically, 99 CRI is maintained, and chromaticity shift is within 1-step (MacAdam ellipse) or ΔE = 0.78. Our raw photometric measurement data in CSV format is available for download here.

Product Downloads

Specification Sheet

5000K Photometric Report

6500K Photometric Report
